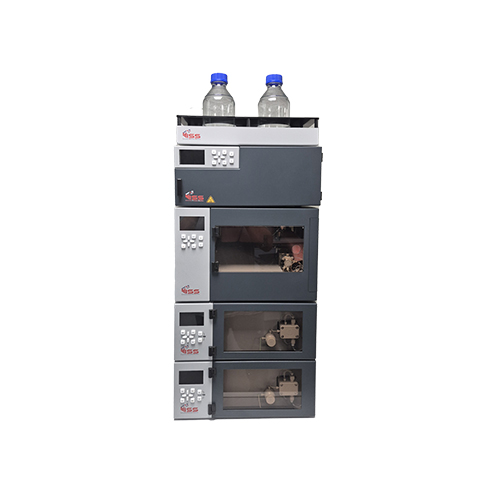

Advanced Anion and Cation Analyser

The Anion and Cation Analyser is an advanced, dual-channel analytical instrument that employs ion chromatography to simultaneously detect and quantify both anions and cations in a wide range of samples. This two-channel system is designed to analyze environmental, industrial, and biological matrices with high efficiency and accuracy.

FEATURES

Integrated tabletop system with dual channels for simultaneous anion and cation analysis
Automatic injection system with partial loop injection
Automatic calibration
Uses ion exchange columns
Anion channel: With suppressed conductivity detection
Cation channel: With optional suppressed conductivity detection
Powerful data analysis software for both anion and cation results
Anion channel: Optimized for inorganic anions
Cation channel: Optimized for inorganic cations

SPECIFICATION

Conductivity Measuring Range	up to 20000 μS/cm at 1 – 20 Hz sample frequency, Auto zero function for the entire measuring range, Noise: 0.1 nS/cm
Suppression	Electrolytic Auto-Suppressor
Column Oven Temperature	30 °C -90 °C
Two Pumps	Isocratic Pumps (analytical, non-metal – Peek version), Pressure Range: 0-40 MPa (0-6000 PSI), Flow rate: 0.001 – 10 ml/min
Degasser	Integrated vacuum degasser
Injection System	Automatic dual needle design to avoid system with wash program and Programmable Injection Volume: 0.1 – 999.9 μ in increments of 0.1 μl, Sample Capacity: 120 samples (1.5ml), Two sample Loops: 20 and 50 μl, Carry Over: < 0.05%
Including	IC column for determination of anions Anionic guard column IC column for determination of cations Cationic guard column Clarity Chromatography Software, 21 CFR Part 11 compliant

INDUSTRIES

METHODS

EPA 300.0	Determination of Inorganic Anions by Ion Chromatography
EPA 300.1	Determination of Inorganic Anions in Drinking Water by Ion Chromatography
ASTM D4327-17	Standard Test Method for Anions in Water by Suppressed Ion Chromatography
ISO 10304-1:2007	Water quality — Determination of dissolved anions by liquid chromatography of ions. Part 1: Determination of bromide, chloride, fluoride, nitrate, nitrite, phosphate and sulfate
ISO 10304-2:1995	Water quality — Determination of dissolved anions by liquid chromatography of ions. Part 2: Determination of bromide, chloride, nitrate, nitrite, orthophosphate and sulfate in waste water
ISO 10304-4:1997	Water quality — Determination of dissolved anions by liquid chromatography of ions. Part 4: Determination of chlorate, chloride and chlorite in water with low contamination
ISO 14911	Water quality — Determination of dissolved Li+, Na+, NH4+, K+, Mn2+, Ca2+, Mg2+, Sr2+ and Ba2+ using ion chromatography — Method for water and waste water
ISO 10304	Water quality — Determination of dissolved anions by liquid chromatography of ions
ASTM D6919	Standard Test Method for Determination of Dissolved Alkali and Alkaline Earth Cations and Ammonium in Water and Wastewater by Ion Chromatography
