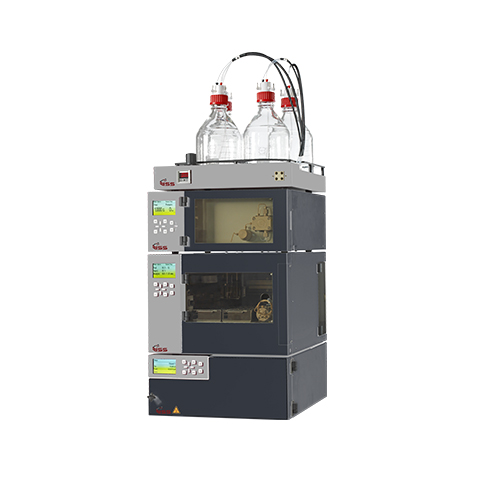

Aromatic Hydrocarbon Analyser

Aromatic Hydrocarbon Analyser is a dedicated system based on high-performance liquid chromatography (HPLC) to determine aromatic hydrocarbon types including monoaromatic, di-aromatic, and polyaromatic hydrocarbon contents in kerosene, diesel fuels and petroleum distillates boiling in the range from 150 to 400 °C. Also, this instrument uses an accepted method for the determination of total aromatics and total saturates in additive-free lube base stocks.

FEATURES

Support for highly accurate analysis of middle distillates and other matrices
One method for determination of total aromatics and total saturates
Innovative, reliable and easy-to-use
Best balance of cost & efficiency
Upgradable and durable design
Full control by PC
Powerful data analysis software
Exceptional sensitivity with low detection limits
Outstanding performance, peak resolution and analysis speed

SPECIFICATION

Pump	Analytical stainless-steel low-pressure gradient version, programmable dual piston pump head for low pulsation, camshaft constantly lubricated, Flow rate: 0.001-10.000 ml/min, Pressure range: 0-40 MPa (0-6000 psi)
Injection System	Automatic Sample Injector System, Sample Capacity: 120 samples (1.5 ml), Sample Loop: 100 µl, Carry Over: < 0.05% with wash program
Backflush Valve	Manual or automatic flow-switching valve operating at pressures up to 40 MPa
Column Oven Temperature	30-100 ˚C
Degasser	Integrated vacuum degasser
Solvent Organizer	Inert plastic tray with 4 bottles
Detector	Refractive Index detector, Refractive index range: 1-1.75, Flow Rate: 0.2-3.0 ml/min, Linearity Range: 1000 µRIU, Noise: 5×10-9, Temperature setting: up to 55 ˚C, Cell Volume: 9 µl
Including	2 Chromatography columns for determination of aromatic hydrocarbons & total saturates Clarity Chromatography Software, 21 CFR Part 11 compliant software

INDUSTRIES

METHODS

ASTM D 6591	Standard Test Method for Determination of Aromatic Hydrocarbon Types in Middle Distillates—High Performance Liquid Chromatography Method with Refractive Index Detection
ASTM D 6379	Standard Test Method for Determination of Aromatic Hydrocarbon Types in Aviation Fuels and Petroleum Distillates—High Performance Liquid Chromatography Method with Refractive Index Detection
ASTM D 7419	Standard Test Method for Determination of Total Aromatics and Total Saturates in Lube Basestocks by High Performance Liquid Chromatography (HPLC) with Refractive Index Detection
