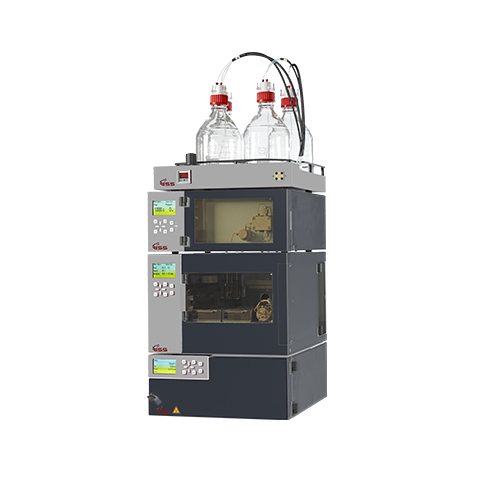

HSS Analyser

HSS analyser is a specialized instrument utilizing ion chromatography (IC) to detect and quantify various heat stable salt’s (HSS) anions. IC, an essential branch of liquid chromatography (LC), has the advantages of high speed, high resolution and low cost, so it is widely used in the analysis of inorganic ions.

FEATURES

Specifically designed for heat stable salt’s anions analysis
Integrated tabletop systems with automatic injection system
Partial loop injection
Automatic calibration
Uses ion exchange column with suppressed conductivity detection
Electrolytic suppression system
Metal-free flow paths
Full control by PC
Powerful data analysis software

SPECIFICATION

Conductivity Measuring Range	up to 20000 µS/cm at 1 – 20 Hz, sample frequency, Auto zero function for the entire measuring range, Noise: 0.1 nS/cm
Suppression	Electrolytic Auto-Suppressor
Column Oven Temperature	30-90 ˚C
Pump	Isocratic Pump (analytical, non-metal – Peek version), Pressure Range: 0-40 MPa (0-6000 PSI), Flowrate: 0.001 – 10 ml/min
Degasser	Integrated 1-channel vacuum degasser
Injection System	Automatic dual needle design to avoid system blockage with wash program and Programmable Injection Volume: 0.1 – 999.9 µ in increments of 0.1 µl, Sample Capacity: 120 samples (1.5 ml), Sample Loop: 100 µl, Carry Over: < 0.05 %
Including	IC column for determination of HSS anions Anionic guard column Clarity Chromatography Software

INDUSTRIES

METHODS

EPA 300.0	Determination of Inorganic Anions by Ion Chromatography
EPA 300.1	Determination of Inorganic Anions in Drinking Water by Ion Chromatography
ASTM D4327-17	Standard Test Method for Anions in Water by Suppressed Ion Chromatography
ISO 10304-1:2007	Water quality — Determination of dissolved anions by liquid chromatography of ions. Part 1: Determination of bromide, chloride, fluoride, nitrate, nitrite, phosphate and sulfate
