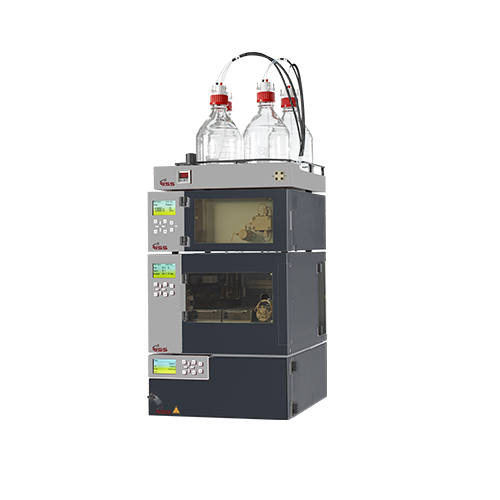

Alkalinity Analyser
The Alkalinity Analyser from ISS based on Ion-exclusion chromatography (IEX) is a specialized instrument designed to detect and quantify carbonate anions in water. IEX is defined as a technique used to separate weak acids, amino acids, sugars, alcohols and other substances on an ion-exchange column. Because of Donnan exclusion (a pseudo-semi-permeable membrane around the ion-exchange resin), ionic material is excluded from the ion-exchange resin and passes quickly through the column. The strongest acids elute at the column void volume because they are highly ionized and are repelled by the immobilized negative charge of the resin. Weaker acids exist largely in the unionized molecular form and are separated by partitioning between the mobile phase and the occluded solvent.

FEATURES
- Simple and intuitive analysis
- Specifically designed for Carbonate anions analysis
- Integrated tabletop systems with automatic injection system
- Partial loop injection
- Automatic calibration
- Reliable performance
- Metal-free flow paths
- Full control by PC
- Powerful data analysis software
SPECIFICATION
Conductivity Measuring Range |
up to 20000µS/cm at 1 – 20 Hz, sample frequency, Auto zero function for the entire measuring range, Noise: 0.1 nS/cm |
Suppression | Optional Electrolytic Auto-Suppressor |
Column Oven Temperature | 30 °C -90 °C |
Pump | Isocratic Pump (analytical, non-metal – Peek version), Pressure Range: 0-40 MPa (0-6000 PSI), Flowrate: 0.001 – 10 ml/min |
Degasser | Integrated vacuum degasser |
Injection System | Automatic dual needle design to avoid system blockage with wash program and Programmable Injection Volume: 0.1 – 999.9 µ in increments of 0.1 µl, Sample Capacity: 120 samples (1.5ml), Sample Loop: 100 µ, Carry Over: < 0.05% |
Including |
|
INDUSTRIES
SPARES & ACCESSORIES

Porous Solvent Filter

Injection Needle for Autosampler

Check Valve Cartridge/Ceramic

Secondary Sealing Ring Analytical

Primary Sealing Ring PE Analytical

Injection Port incl. Sealing PEEK Autosampler

PEEK Capillary 0.25*1.59 mm (1/16”) 3m

Finger Tight Fitting PEEK

Cationic Guard Column

Ferrule f.1/16″ Capillary Mat. PTFE TM used in IC Systems for Cond. Detector

Fitting 1/4-28 Gray with Knurled Screw Head 1/16”
